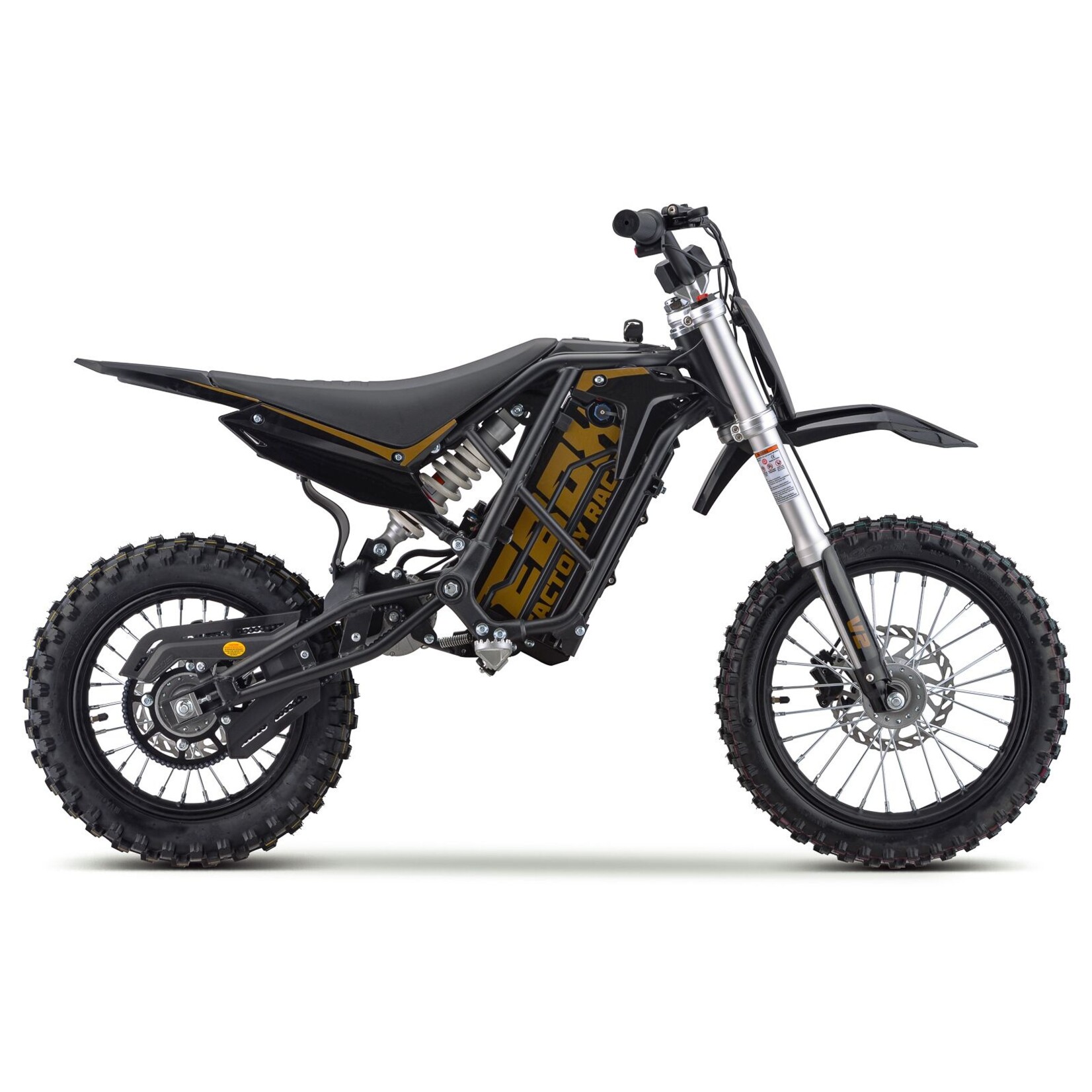

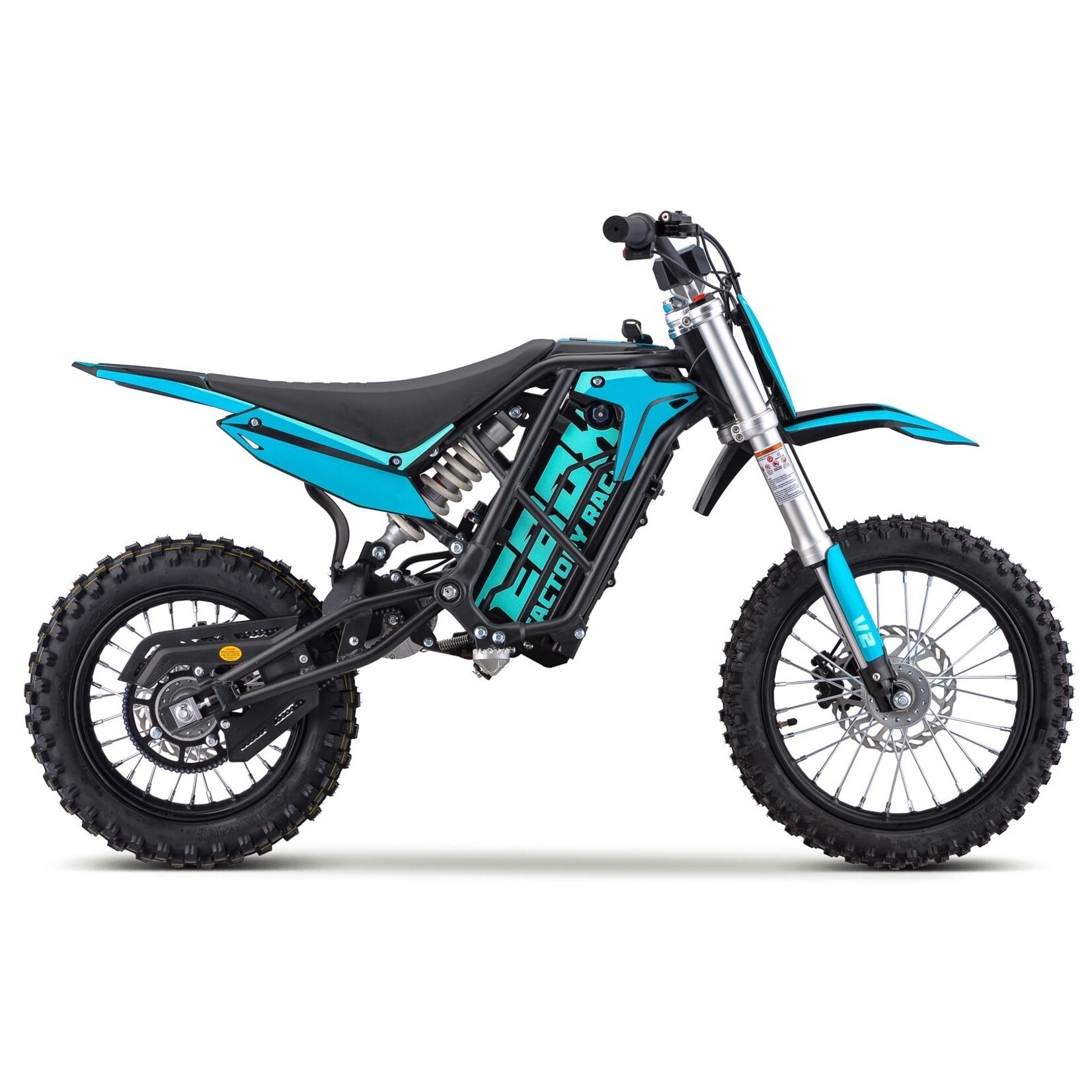

EBOX2 is a lightweight 2kW electric minibike (mini motocross bike) with upside down forks and mono rear shock. It features a lightweight 60v 18,2Ah Lithium Battery and brushless DC motor / controller. Designed for 14 years and up and its serious piece of
| Frame type | Double Cradle |
|---|---|
| Front wheel size | 14" |
| Rear wheel size | 12" |
| Front brake | Hydraulic Disc |
| Front disc | 180mm |
| Rear brake | Hydraulic Disc |
| Rear disc | 180mm |
| Front tire | 14" x 2.27" |
| Rear tire | 12" x 3" |
| Chain | 219H |
| Gearing | Front 10T, Rear 70T |
| Max load | 85kg |
| Fork type | USD |
| Shock type | Mono shock |
| Handlebar | Alloy |
| Motor voltage | 60V |
| Peak power | 2.0kW (2.6hp) |
| Max RPM | 4,400 |
| Battery | 60V 18.2Ah Lithium |
| Controller output | 42A |
| Charger | AC 110-240V, Output: 67.2V, 3A |
| Charge time | 5-6 hours |
|---|---|
| Range per charge | 35-40 Km |
| Top speed | 52 Km/h |
| External adjustability | Top speed, Acceleration |
| Frame construction | High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension |
| Wheelbase | 945mm |
| Ground clearance | 275mm |
| Seat height | 66cm |
| Weight | 42.5kg |
